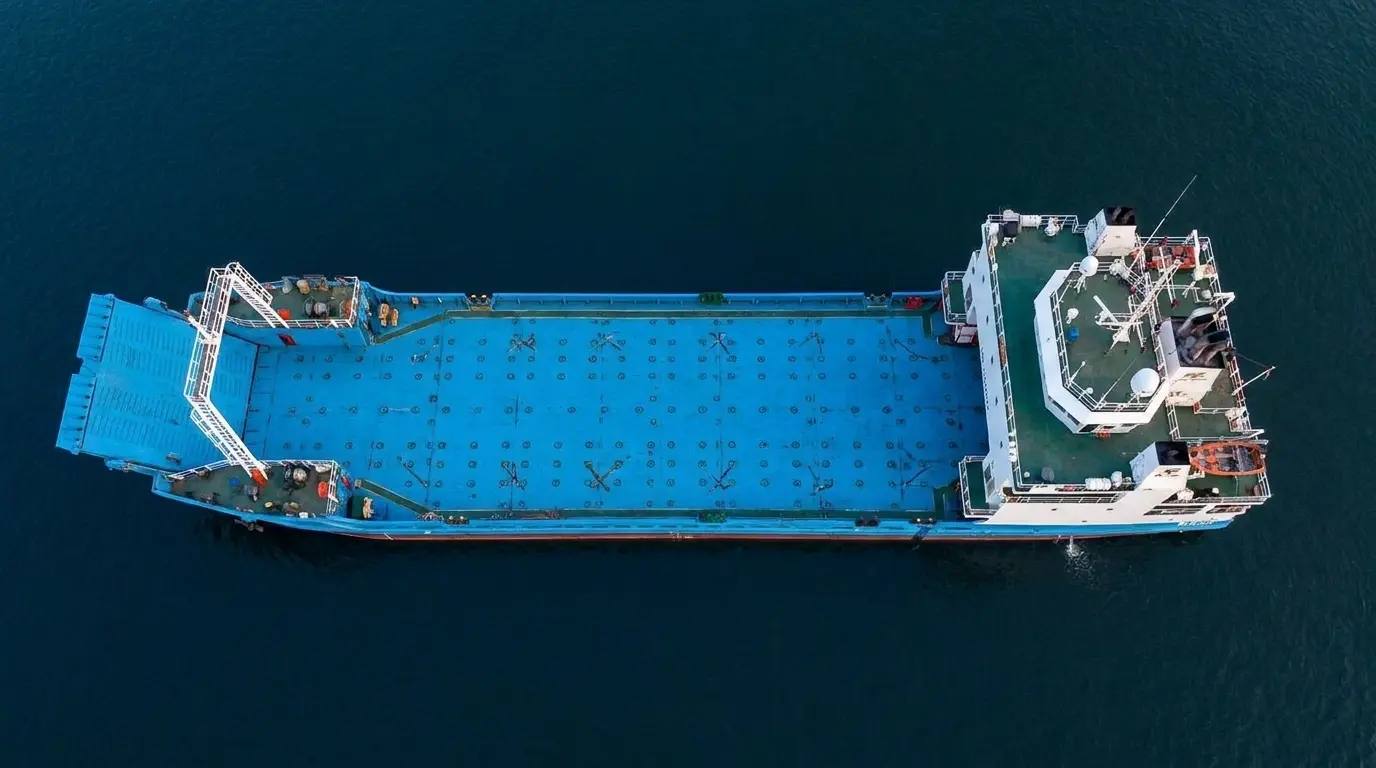

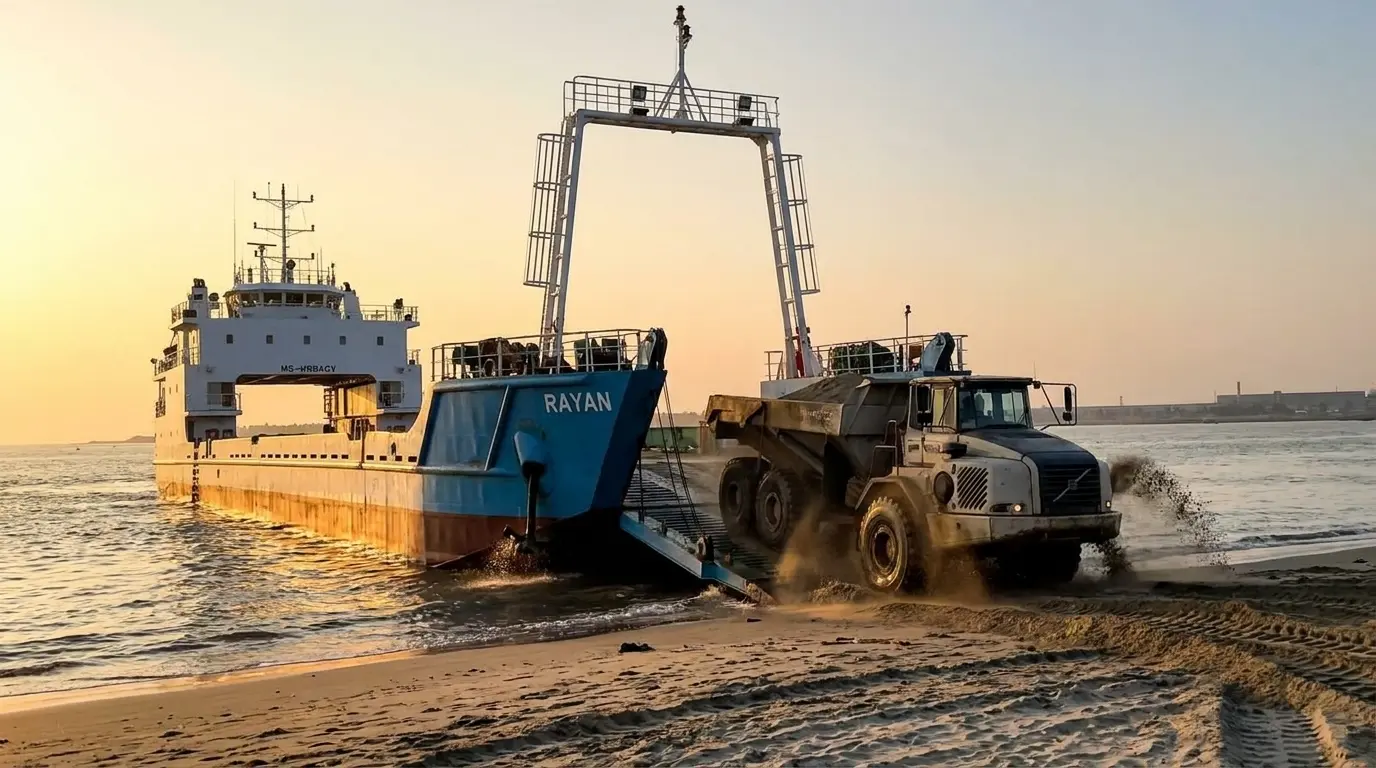

RAYAN is a specialised Landing Craft built by Western Marine Shipyard Ltd. for Marwan Shipping & Trading Co. LLC, United Arab Emirates. Designed for demanding marine transport operations, the vessel combines a robust steel hull with substantial cargo tank capacity and a practical landing craft configuration.
With a length overall of 69.00 metres, a moulded breadth of 16.00 metres and a deadweight-oriented working design, RAYAN reflects Western Marine Shipyard’s capabilities in constructing specialised vessels for international clients.
Registered at Ajman, UAE, under IMO No. 1089663, the vessel was built under shipyard hull number WMShL-201 and is classed by Bureau Veritas (BV).
| Vessel Name | RAYAN |
| Vessel Type | Landing Craft |
| Owner / Operator | Marwan Shipping & Trading Co. LLC |
| Flag | United Arab Emirates |
| Port of Registry | Ajman |
| IMO Number | 1089663 |
| Shipyard Hull No. | WMShL-201 |
| Length Overall | 69.000 m |
| Length Over Forecastle | 66.800 m |
| Length Over Main Deck | 64.842 m |
| Length Between Perpendiculars | 61.960 m |
| Breadth Moulded | 16.000 m |
| Depth Moulded | 4.500 m |
| Design Draught | 3.000 m |
| Gross Tonnage | 1,394 GT |
| Net Tonnage | 523 NT |
| Hull Material | Mild Steel |
| Classification Society | Bureau Veritas (BV) |
| Fuel Oil Capacity | 51.915 m³ |
| Cargo Fuel Oil Capacity | 451.770 m³ |
| Freshwater Capacity | 51.974 m³ |
| Freshwater Ballast Capacity | 1,967 m³ |
| Total Complement | 12 Persons |
| Accommodation | Multiple cabin configurations |
| Cargo / Deck Area | To Be Confirmed |
| Builder | Western Marine Shipyard Ltd. |
| Vessel Designation | Landing Craft |
| Main Engine Manufacturer | YANMAR |
| Main Engine Model | 6EY17W |
| Main Engine Power | Listed as 837 kW at 1,500 rpm* |
| Auxiliary Engine Manufacturer | YANMAR |
| Auxiliary Engine Model | 4HAL-2-TN |
| Auxiliary Engine Power | 115 kW each |
| Auxiliary Engine Units | 2 |
| Gearbox Manufacturer | YANMAR |
| Gearbox Model | YXH 500 |
| Propeller Type | 1450 × 4RH, HTA01024 |
| Navigation & Communication Equipment Supplier | Master System LLC, UAE |
| Classification Society | Bureau Veritas (BV) |
◆ Completed Product
| Vessel Type | Landing Craft |
| Owner / Operator | Marwan Shipping & Trading Co. LLC |
| Flag State | United Arab Emirates |
| Port of Registry | Ajman |
| IMO Number | 1089663 |
| Hull No. | WMShL-201 |
| Length Overall | 69.00 m |
| Gross Tonnage | 1,394 GT |
| Classification | Bureau Veritas (BV) |
| Market | International |
RAYAN was constructed for an international client and is listed with Bureau Veritas (BV) classification. The project highlights Western Marine Shipyard’s experience in delivering specialised vessels for overseas operators.
For detailed class certificates, statutory documentation and vessel-specific compliance records, please contact Western Marine Shipyard.
